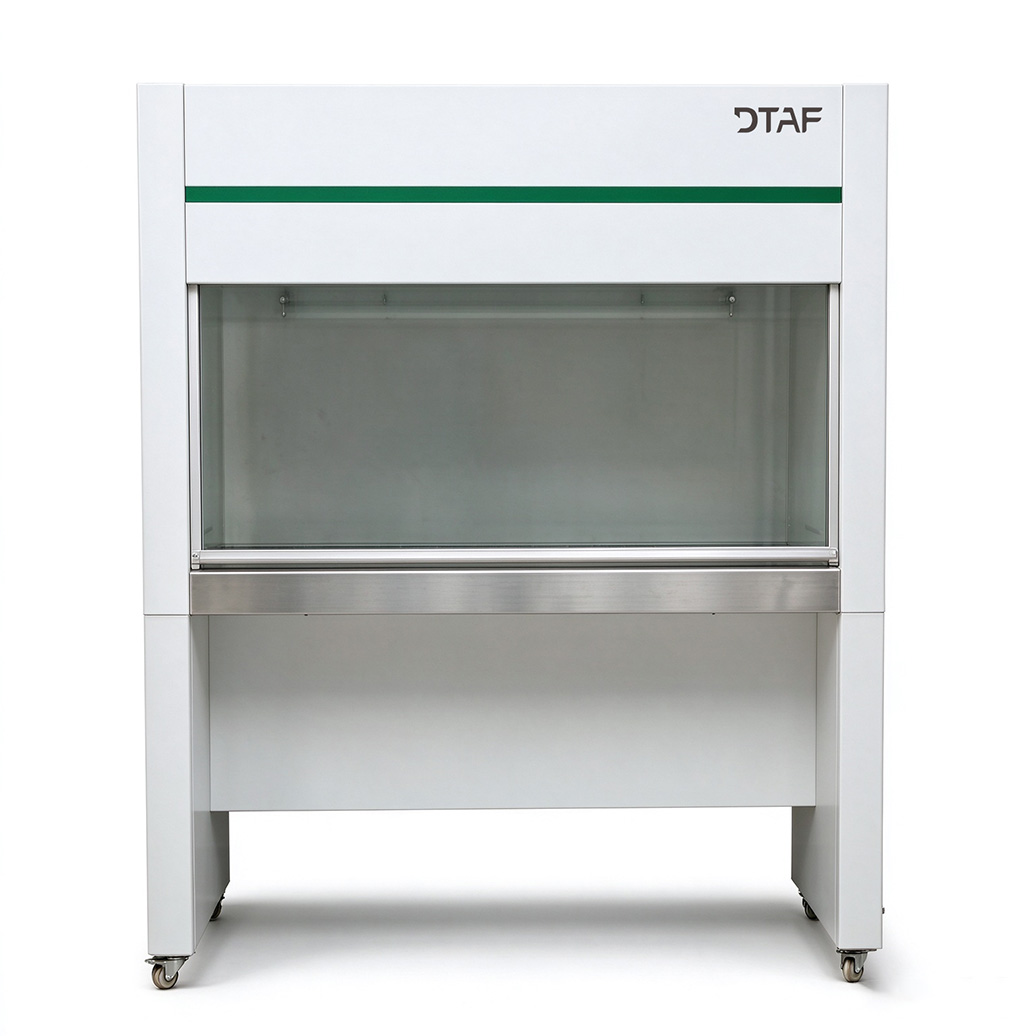

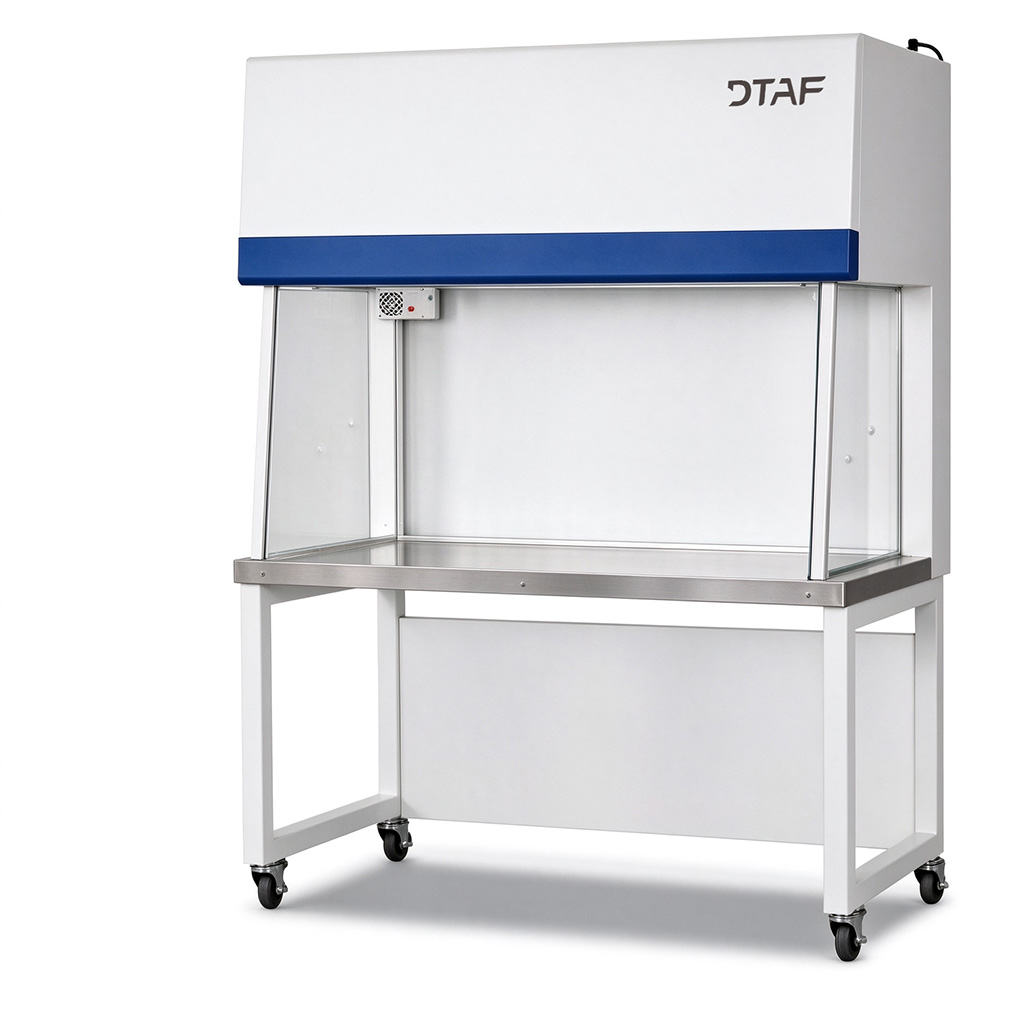

Cleanliness workbench, laminar flow workbench

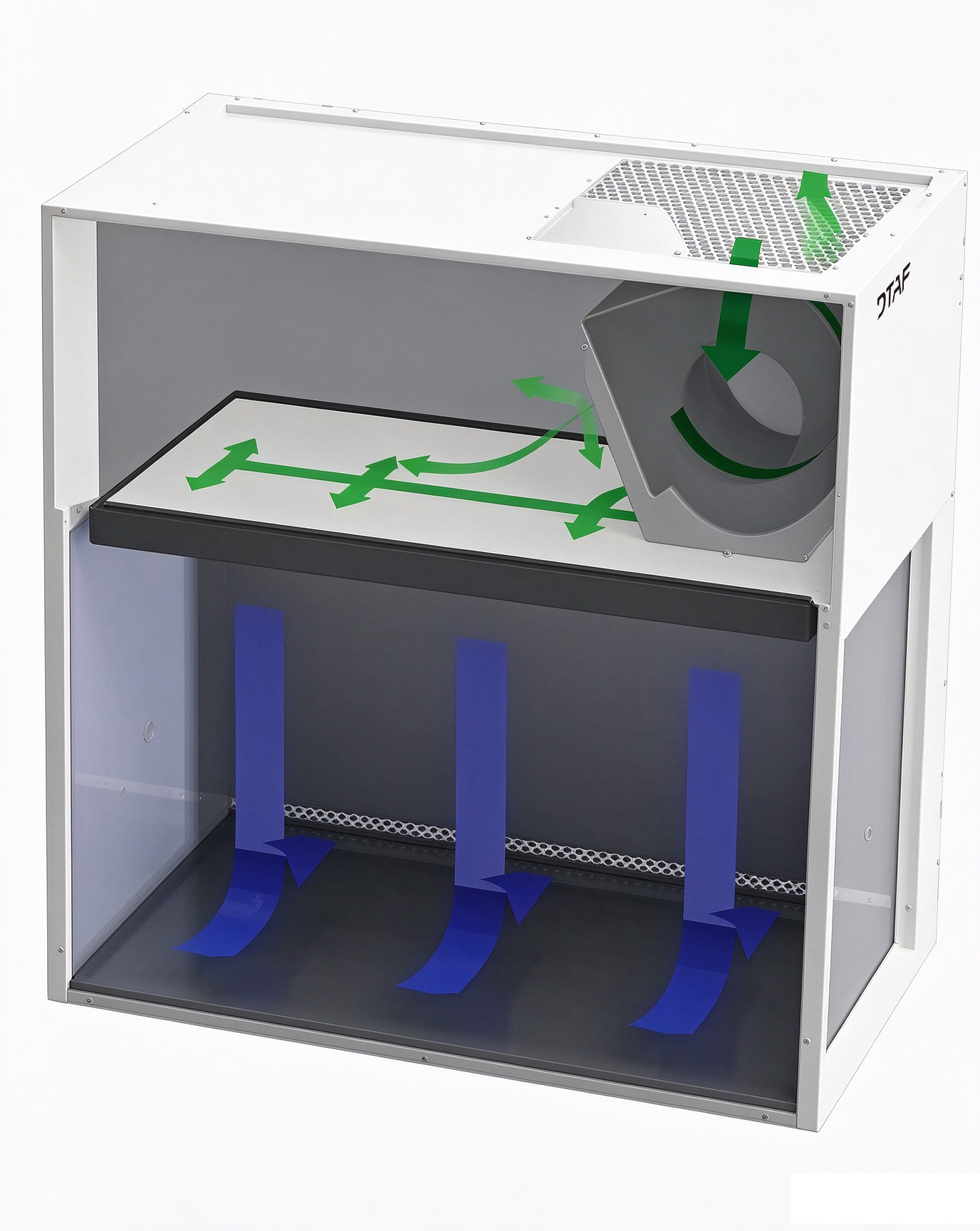

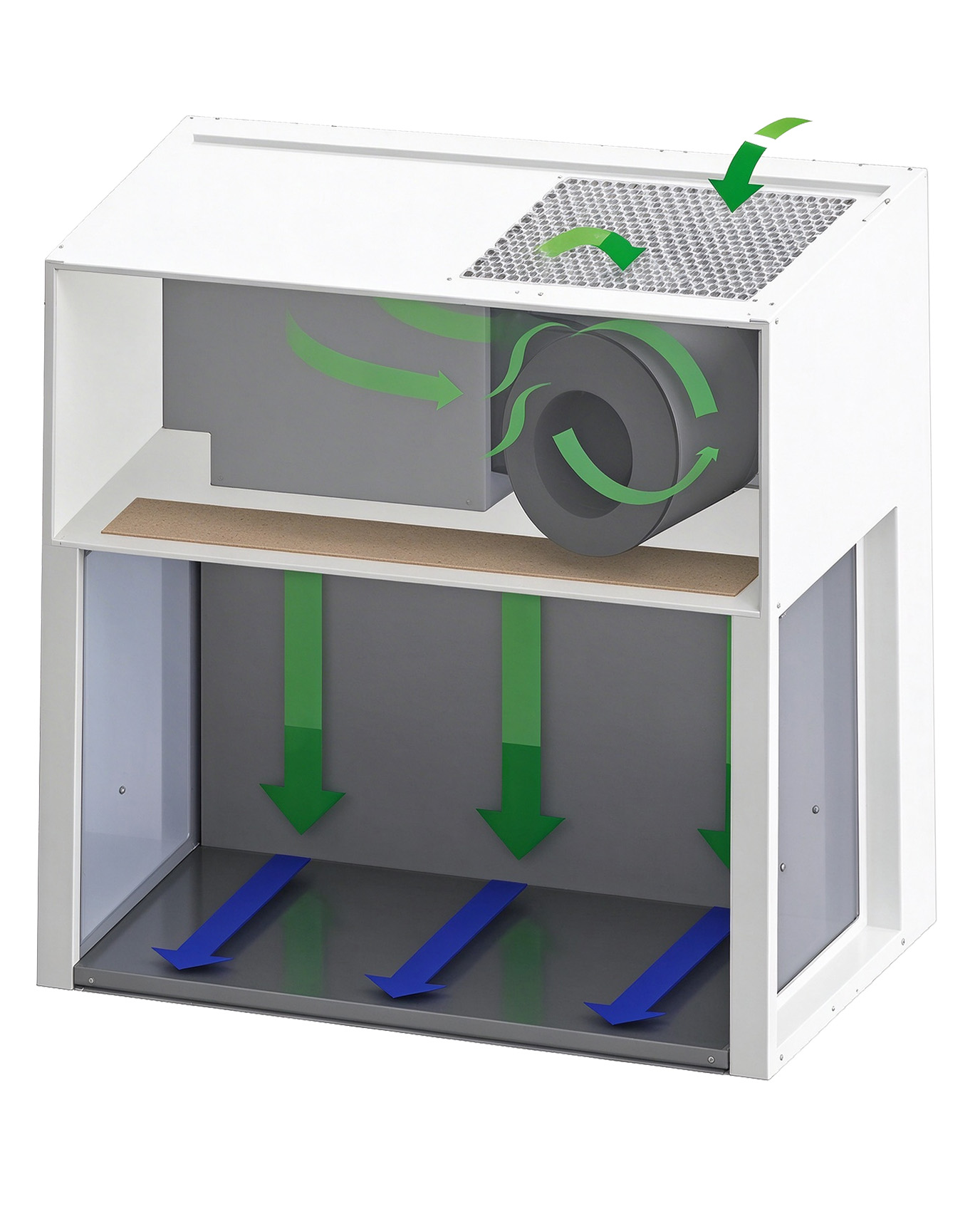

Types of Clean Benches There are two main types: horizontal and vertical laminar flow benches. Horizontal benches blow air from the back toward the operator, offering superior protection for samples. Vertical benches direct air downward from the top, which is safer for the operator and works well in smaller spaces.

Highlights

Made of stainless steel. Both horizontal and vertical unidirectional airflow options are available.

Adjustable air volume fan system. The touch switch adjusts voltage to keep the wind speed in the working area at its optimal state.

Learn More

Product Features

Cleanliness workbench Application:

Our clean benches are mainly used in electronics, biology, pharmaceutical, and precision instrument industries that require a high-cleanliness working environment. As a universal device for local purification with horizontal or vertical unidirectional airflow, the purification grade can reach Class 100.

Technische Spezifikationen

Model	XS-GZT-B01	XS-GZT-B02	XS-GZT-B03
External Dimensions (mm)	1000 x 700 x 1800	1200 x 700 x 1800	1500 x 700 x 1800
Working Area Dimensions (mm)	950 x 650 x 600	1100 x 650 x 600	1400 x 650 x 600
Cleanliness Class (ISO14644-1 Standard)	Klasse 100
Rated Air Volume (m³/h)	900-1000	1000-1200	1400-1600
Average Air Velocity (m/s)	0.3-0.5
Filtrationseffizienz (@ 0.3 μm)	99.99
Illuminance (≥ μx)	300
Power (KW)	130	130	200
Noise (dB, near equipment)	≤63
Power Supply (V/Hz)	220/50
LED Lamp Specification and Quantity (W x pcs)	9 x 1	13 x 1	18 x 1
Material	Cabinet: cold-rolled steel with spray coating or stainless steel; Work surface: frosted stainless steel
