| إطار | الحديد المجلفن , الألومنيوم , الفولاذ المقاوم للصدأ |
|---|---|
| كفاءة | 99.998% |
| مادة التصفية | Micro glass fiber |
Product Details

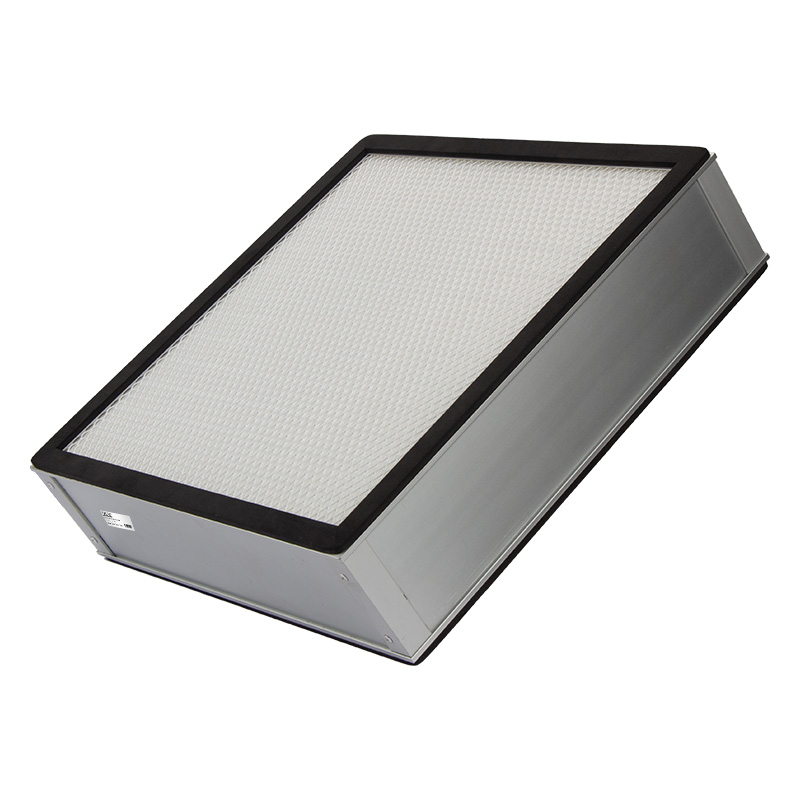

The MINI PLEAT construction is designed to give the filter more surface area. This filter has an average of over 5 times as much surface area as most pleated filters. The increased surface area can make filtering capabilities better and filter life longer . These filters can provide up to one year of use with proper care and maintenance. Designed for areas such as hospitals, air purifiers, and computer clean rooms.
Non-grid high-efficiency filter, using ultra-fine glass fiber filter paper / PTFE membrane filter material that is continuously folded. The inter-fold separation is supported by heat-melt adhesive dots. There is no solid metal grid. The outer frame can be made of aluminum alloy, galvanized steel plate, أو 304 stainless steel. Front and rear are equipped with spray-painted protective nets. The entire unit is sealed with polyurethane injection or knife-edge liquid channel sealing.

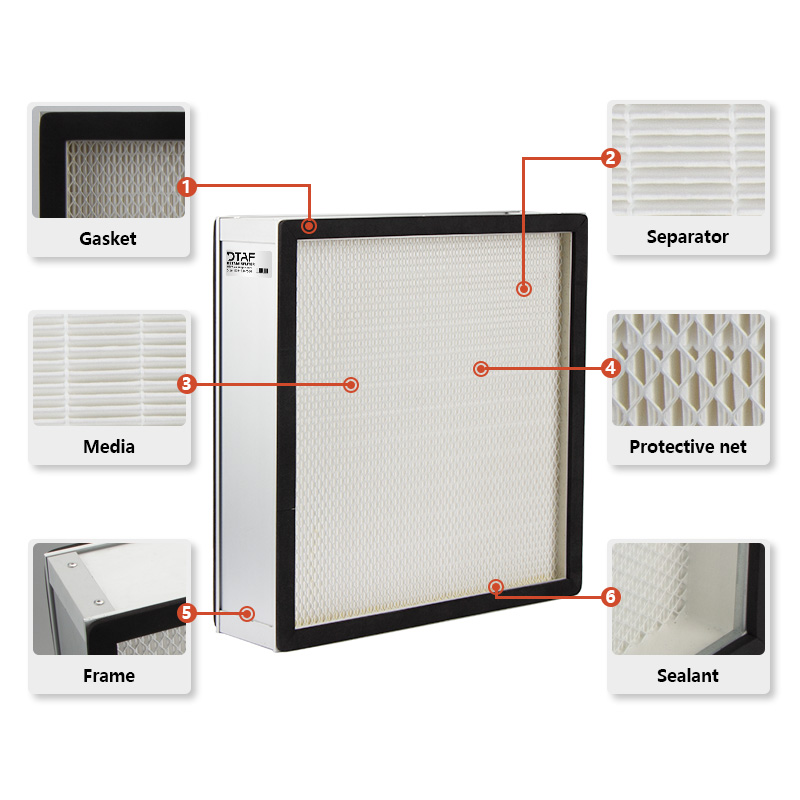

| ظروف المواد والتشغيل | |
| وسائط | Micro glass fiber |
| إطار | Extruded aluminum/ Folding aluminum/ Galvanized steel/ Stainless steel |
| Sealant | Two-component polyurethane glue |
| Gasket | PU endless gasket /EVA/ EPDM |
| Separator | Hot melt bead |
| Optional aluminum / Galvanized iron frame
thickness (مم) |
38/ 46/ 50/ 69/ 75/ 78/ 80/ 90/ 96/ 100/ 110/ 120/ 150 (Customized design is available) |
| الأعلى. درجة حرارة | 70درجه مئوية |
| الأعلى. رطوبة | 100% |
طلب
فلتر هيبا: It widely used to the terminal filtration of the clean room.
ULPA filter: Work zone where require demanding clean class, like hospital operation room, laboratory, pharmaceutical room, electronics, optical fiber equipment and food processing factory etc.
| أبعاد (مم) (العرض × الارتفاع × العمق) |
Rated air volume / Initial resistance (م³/ساعة)/(pa) |
Wind speed on the surface (آنسة) |
Filtering area (m²) |
Different air volumes / مقاومة (م³/ساعة)/(pa) |
Suggested final resistance (pa) |
EN1822 | Filter efficiency |
|---|---|---|---|---|---|---|---|
| 484×484×69 | 610/165 | 0.72 | 6.3 | 380/95 | 760/210 | 400 | H13 |
| 610×610×69 | 1000/175 | 0.72 | 10 | 600/95 | 1200/210 | 400 | H13 |
| 570×1170×69 | 1700/170 | 0.72 | 17.6 | 1080/95 | 2150/210 | 400 | H13 |
| 1170×1170×69 | 3500/165 | 0.72 | 36.6 | 2200/95 | 4400/210 | 400 | H13 |
| 320×320×96 | 500/230 | 1.36 | 4.4 | 280/140 | 330/165 | 400 | H13 |
| 484×484×96 | 1000/225 | 1.19 | 9.9 | 630/140 | 760/165 | 400 | H13 |
| 610×610×96 | 1500/215 | 1.13 | 15.6 | 1000/140 | 1200/165 | 400 | H13 |
| 610×1220×96 | 3000/215 | 1.13 | 30.8 | 2000/140 | 2400/165 | 400 | H13 |
