Filtre à air de poche en fibre synthétique à longue durée de vie M5/F6/F7/F8/F9
| Pocket type | Sewing bag / Ultrasonic bag |
|---|---|
| Médias | Synthetic fiber / Non-wowen fabrics |
| Cadre | Galvanized iron , Aluminium |
| Optional frame thickness(mm) | 21 , 25 , 46 |
| Max. Temperature | 80℃ |
| Max. Humidity | 100% |
Prouct Details

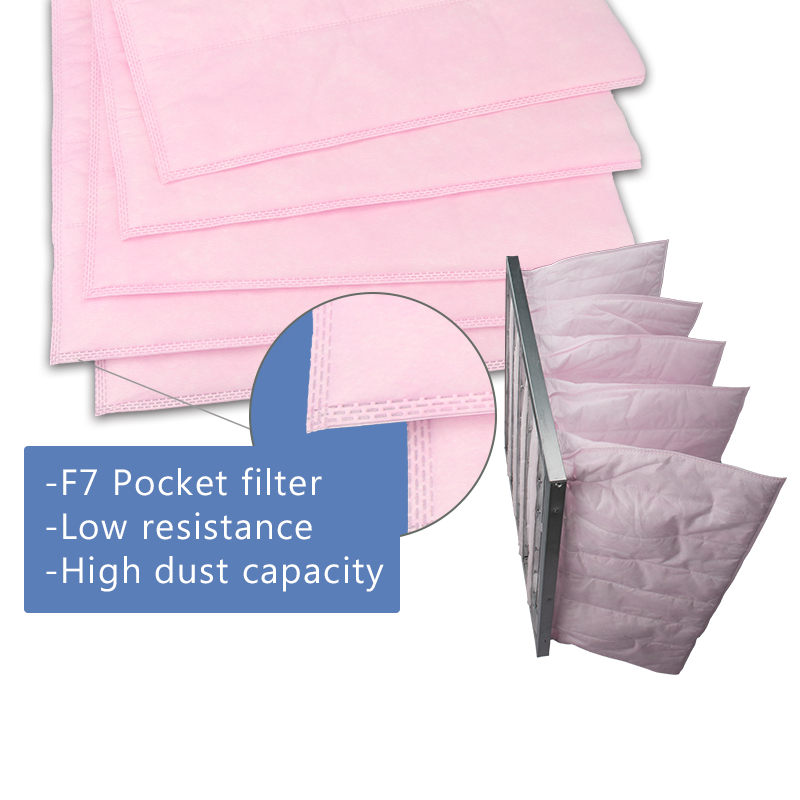

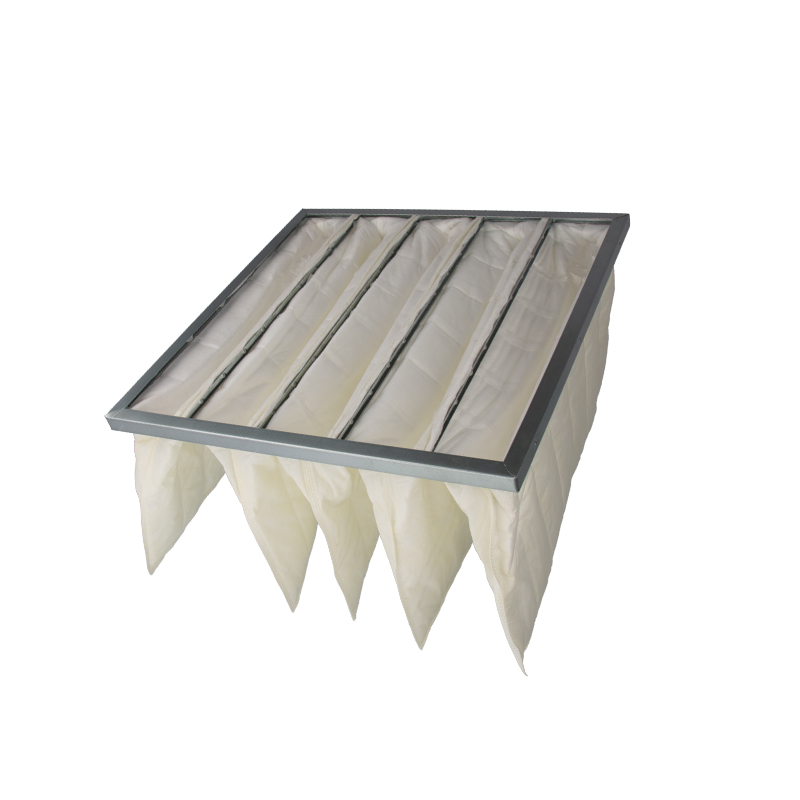

The Synthetic Fiber Pocket Medium Filter is available in different efficiency ratings, ranging from low to high, based on specific filtration needs. It is commonly used in HVAC systems of residential, commercial, and industrial facilities, providing clean and healthy air for occupants. This filter plays a vital role in reducing the risk of respiratory issues and improving overall indoor air quality.
The synthetic fiber media offers high dust retention efficiency, preventing the re-release of captured particles into the air.
Standard size and parameter
|
Model
|
Overall size
L×W×D |
Rated Airflow （m3/h） |
Initial pressure drop（Pa） |
||||
|
Arrestance （G4） |
Efficacité
（M6） |
Efficacité
（F7） |
Efficacité
（F8） |
Efficacité （F9） |
|||
| 6DAI 592.592-380 | 592×592×380×6 | 2400 | 40 | 60 | 100 | 120 | 140 |
| 3DAI 287.592-380 | 287×592×380×3 | 1200 | |||||
| 6DAI 592.592-480 | 592×592×480×6 | 3000 | |||||
| 3DAI 287.592-480 | 287×592×480×3 | 1500 | |||||
| 6DAI 592.592-560 | 592×592×560×6 | 3400 | |||||
| 3DAI 287.592-560 | 287×592×560×3 | 1700 | |||||
| 6DAI 492.492-560 | 492×492×560×5 | 2500 | |||||
Note: We can also produce non-standard filters of 150≤W≤1184, 150≤H≤600, 300≤D≤940.
Application
Widely used in ventilation, air conditioning systems, precision instruments manufacturing plant, electronics factory, pharmaceutical workshop and other places.
