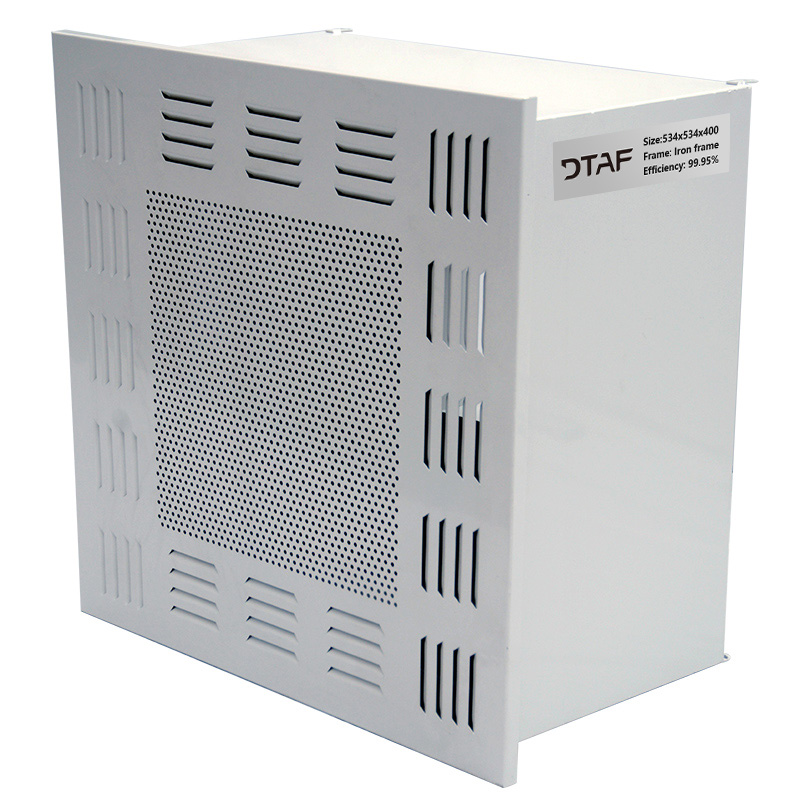

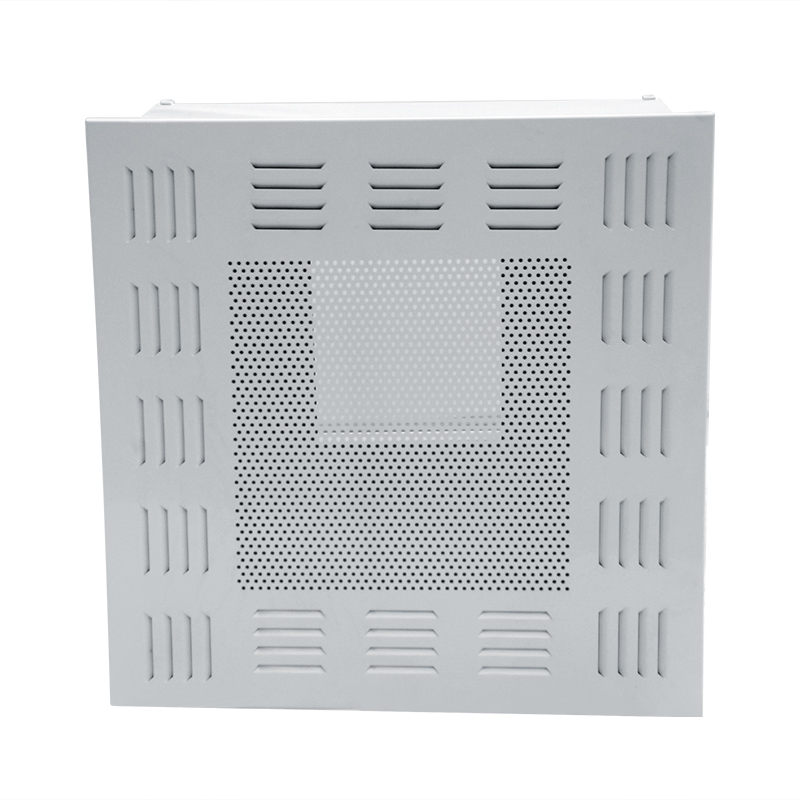

High-efficiency supply air outlet

Product Details :

High-efficiency air outlet, is the terminal equipment in the purification air supply system.

In order to air before passing through the HEPA filter to obtain a more ideal static pressure, so that the high efficiency filter out of the air uniform. HEPA boxes requiring on-site leakage testing are equipped with PAO sol dust entry ports and upstream concentration detection ports, as well as differential pressure detection ports and diffuser plates based on customer requirements.

ABS plastic air vent advantages:

• One time injection molding, fundamentally solving the risk of leakage; smooth inner surface, no dust accumulation, easy to clean;
• Resistant to acid and alkali, formaldehyde fumigation, VHP and ozone sterilization;
• Flame retardant UL94-V0 grade.
• Flame retardant, corrosion resistance, high strength and other excellent characteristics have passed the international SGS and BV testing.

Advantages of rolled plate sprayed plastic air vent:

• High welding efficiency by using robotic arm full welding;
• No risk of leakage;
• Small box deformation;
• Stronger adhesion of the plastic-sprayed layer by pickling and phosphating treatment.

Standard model size and basic performance parameters ：

메모: According to the user’s need for external dimensions, the production of non-table specifications listed in the air supply outlet.
