| Dimension W × D × H (مم) |
Air Volume | Initial P.D (بنسلفانيا) |
Final P.D (بنسلفانيا) |
|||
| H13 | ح14 | |||||
| CMM | CFM | CMM | CFM | |||
| 305×305×290 | 7 | 250 | 6 | 227 | 249 (25.4 mmH2O) |
500 (50.8 mmH2O) |
| 305×610×290 | 15 | 527 | 14 | 480 | ||
| 610×610×290 | 31 | 1111 | 29 | 1012 | ||
| 760×610×290 | 40 | 1399 | 36 | 1273 | ||
| 915×610×290 | 48 | 1696 | 44 | 1544 | ||
| 1220×610×290 | 65 | 2280 | 59 | 2076 | ||

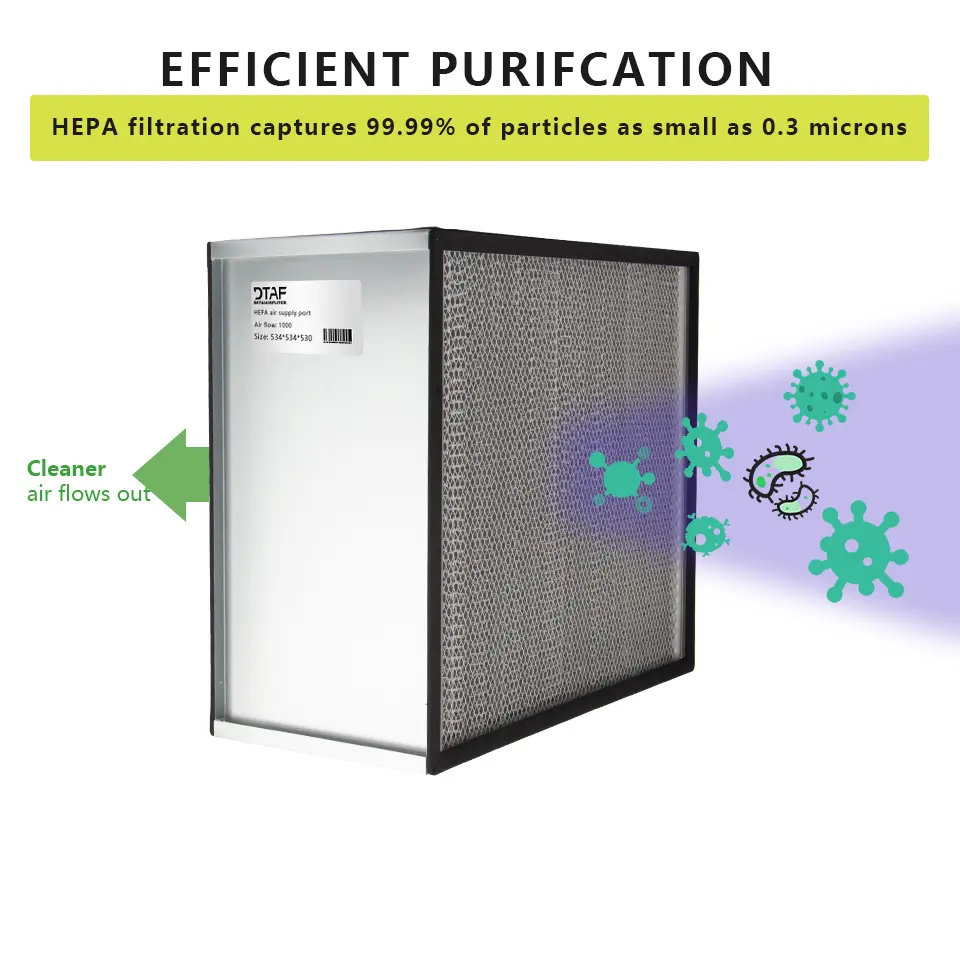

High efficiency: Purifying air conditioning system, local purification equipment end filtration, can be used for often change the air volume environment.
Medium efficiency: Central air conditioning and integrated air supply system can be used for the primary filtration of the air conditioning system to protect the high efficiency filter in the system and the system itself. In the case of air purification and cleanliness requirements are not high, the air filtered by the medium effect filter can be directly sent to the work area.
Intimate customization: According to any needs, tailor-made intimate products for you.
