| Frame | ABS/Galvanized Iron/Aluminum/Stainless steel |
|---|---|
| Spacers | EV |
| Filter Media | Glass fibre |
| Gasket | PU seal strip |
Standard Capacity

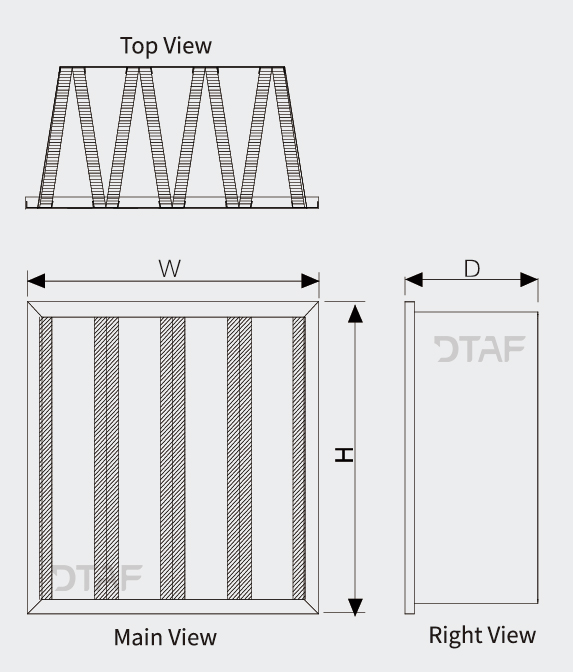

| Dimension W × D × H (mm) |
Air Volume | Initial P.D (Pa) |
Final P.D (Pa) |
|||
| H13 | H14 | |||||
| CMM | CFM | CMM | CFM | |||
| 305×610×292 | 25 | 900 | 23 | 815 | 249 (25.4 mmH2O) |
500 (50.8 mmH2O) |
| 610×610×292 | 51 | 1800 | 46 | 1630 | ||
High Capacity
| Dimension W × D × H (mm) |
Air Volume | Initial P.D (Pa) |
Final P.D (Pa) |
|||
| H13 | H14 | |||||
| CMM | CFM | CMM | CFM | |||
| 305×610×292 | 28 | 1000 | 26 | 920 | 249 (25.4 mmH2O) |
500 (50.8 mmH2O) |
| 610×610×292 | 57 | 2000 | 52 | 1840 | ||
Standard size and parameter
| Model
|
Overall size
L×W×D |
Rated （m3/h） |
Initial pressure drop（Pa） |
||||
| Arrestance
F7@0.4um 80%≤E<90% |
Efficiency
F8@0.4um 90%≤E<95% |
Efficiency E10@MPPS 85%≤E<95% |
Efficiency E12@MPPS 99.5%≤E |
Efficiency H13@MPPS 99.95%≤E |
|||
| 3V | 490x490x292 | 1300 | 60 | 70 | 110 | 160 | 220 |
| 4V | 592x592x292 | 2400 | |||||
| 4V | 287x592x292 | 1200 | |||||
| 6V | 610x610x292 | 2600 | |||||
| 5V | 610x610x292 | 2600 | |||||
| 4V | 610x610x292 | 2400 | |||||
| 4V | 305x610x292 | 1200 | |||||
