| Filter material | Ultra-fine glass fiber filter material, with fine fibers and slow efficiency attenuation, excellent anti-aging performance |
|---|---|
| Filter bag | Sewn bag body, reinforced bag opening; Bag quantity can be selected from 3 to 12 pieces; Some styles use heat-melt sealing edges to reduce needle hole air leakage |
| Frame | Available in galvanized steel, aluminum alloy, and 304 stainless steel |
| Internal partition | Built-in positioning partition to prevent the filter bag from being sucked瘪 and adhered under wind pressure， ensuring smooth air flow channels |
| Sealing | Flange equipped with EVA foam sealing pad to ensure the sealing performance of frame installation |
This 24×24 pocket air filter is the most common size of pocket air filters. The pocket air filter is made of Synthetic fiber, glass fiber can also be used according to requirements. During production, the fibrous materials are made together to form pockets. Pocket quantity of this type air filter can be customized according to customer requirements, 3, 6, 8, etc. The length of the bag can also be specified by the customer. The dust holding capacity, surface area, resistance, etc., will change with the change of these pockets and lengths. Generally speaking, the larger the surface area and the greater the dust holding capacity, the longer the filter life.
Secondary or back-end filtration for various ventilation systems, air conditioning systems and dust removal systems.
Frame: Aluminium alloy/ Galvanized steel/Stainless steel/Plastic
Media: Synthetic media or fiberglass media
Design: Pocket type
Maximum relative humidity: 100%
Frame thickness: 21mm, 25mm, 46mm
Customized size: Available
Efficiency rate:
Green pocket air filter: 60-65% @1~3μm,

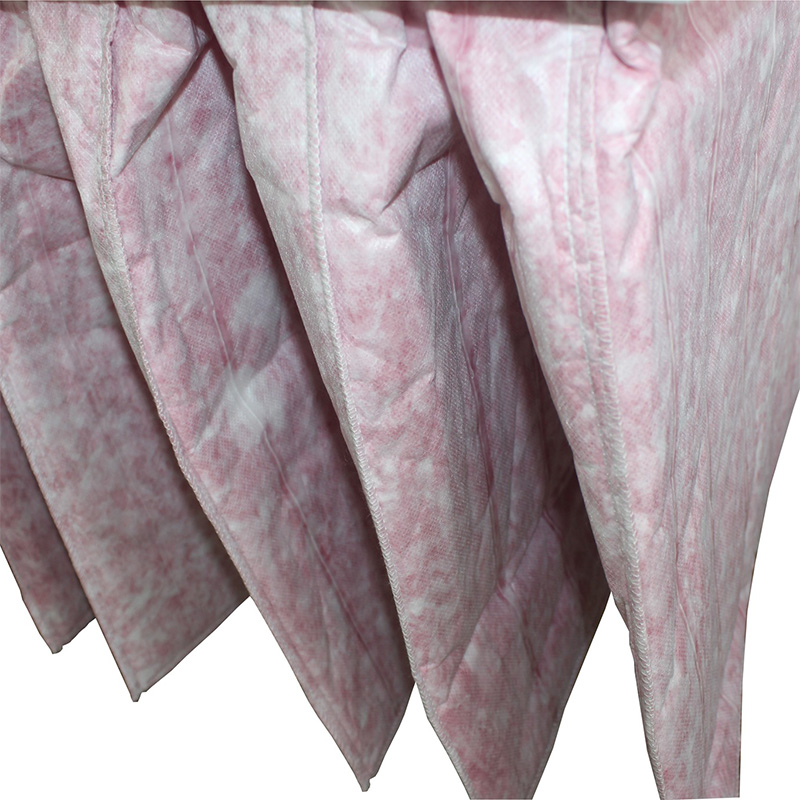

Pink pocket air filter: 80-85% @ 1~3μm,
Yellow pocket air filter: 85-90% @ 1~3μm
| Model | Actual size W×H×D(mm) |
Pocket Qty | Air flow (m³/h) |
Initial P.D.(Pa) | ||
| MERV 11 | MERV 13 | MERV 14 | ||||
| DG3D-34T-6A | 592×592×381 | 6 | 3400 | 82 | 135 | 165 |
| DG3D-34T-8A | 592×592×381 | 8 | 3400 | 75 | 126 | 150 |
| TF5D-34T-6B | 592×592×533 | 6 | 3400 | 70 | 115 | 140 |
| TF5D-34T-8B | 592×592×533 | 8 | 3400 | 63 | 106 | 126 |
| TF8D-34T-6C | 592×592×600 | 6 | 3400 | 52 | 86 | 118 |
| TF8D-34T-8C | 592×592×600 | 8 | 3400 | 48 | 81 | 106 |
| Support customization | ||||||
– Area around pockets is ultrasonic sealed to ensure consistent air flow
– Standard and custom sizes are both available.
-Robust and durable material;
-High dust holding capacity and low resistance;
-High porosity of filter media, large filtration area;
-Temperature resistance up to 150 degrees;
-Good efficiency stability;
-No formaldehyde addition, safe and environmental protection;
-High air tightness;
-low clogging rate and long service life;
-Compliance with EN779-2012, ISO 16890-2016 test standards.
This 24×24 pocket filter is a good choice for HVAC systems such as food and beverage processing plants, hospitals, laboratories, and offices, as well as any other environment where the air needs to be kept clean.
