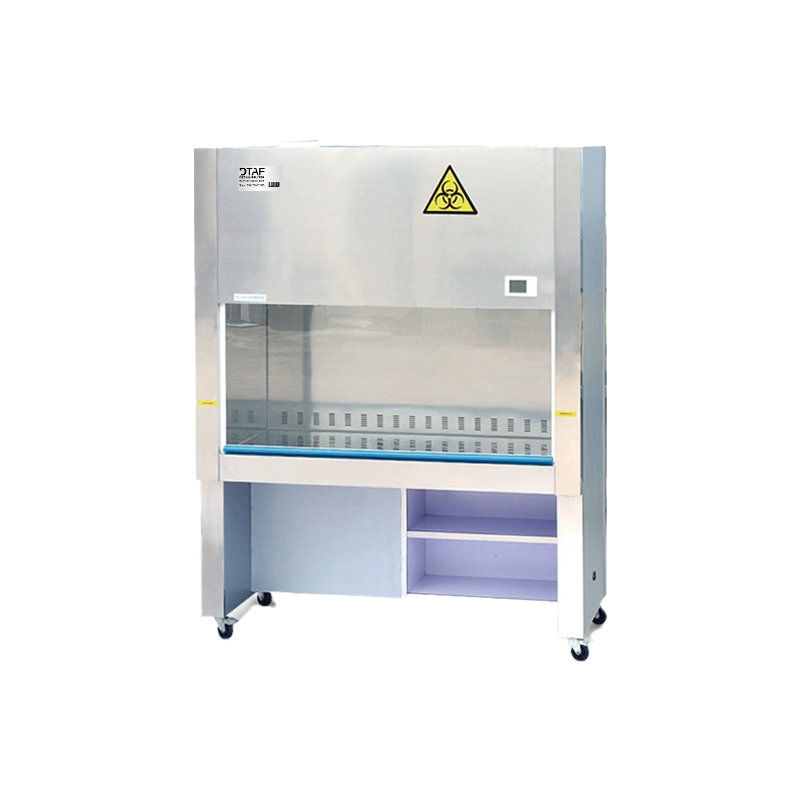

A clean bench is a purification device designed to provide a dust-free working environment, featuring ease of use, simple structure, and high efficiency. It is specifically developed to meet the requirements for cleanliness in localized work areas across modern industries, optoelectronics, biomanufacturing, and scientific research. The VS-type ultra-clean workbench is a vertical direct-current type local purification unit. Within a designated space, indoor air passes through a primary filter and is then blown into a static pressure chamber by a low-noise fan. Afterward, it goes through a high-efficiency air filter, and the resulting clean airflow is discharged vertically and uniformly, removing dust particles and biological contaminants. This process achieves a class 100 cleanliness level in the working area, creating a sterile, highly purified environment.
| Model | Clean workbench | |||
|---|---|---|---|---|
| Parameter | Single-person vertical flow | Individual horizontal flow | Two-person vertical flow | Two-person horizontal flow |
| Cleanliness level | 100 级 0.3um | |||
| Wind speed | 0.3–0.5m/s | |||
| Noise | ≤ 58dB | |||
| Power supply | 220V, 50Hz | |||
| Power | 170W | 240W | ||
| Lighting | 20W × 2 | 30W × 2 | ||
| Dimensions of the shape | W=900mm | W=900mm | W=1300mm | W=1300mm |
| H=1700mm | H=1500mm | H=1700mm | H=1500mm | |
| L=650mm | L=830mm | L=650mm | L=830mm | |
| Work area size | W=800mm | W=700mm | W=1200mm | W=1200mm |
| H=650mm | H=650mm | H=650mm | H=650mm | |
| L=650mm | L=650mm | L=600mm | L=600mm | |
